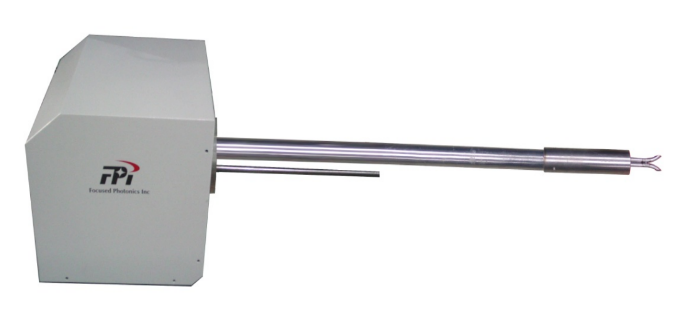

TPF-100 Integrated Temperature, Pressure & Flow Rate Transmitter

TPF-100 integrated Temperature, Pressure and Flow Rate Detector is used for real-time monitoring flue gas parameters including Temperature, Pressure and Flow rate. With all-in-one design and structure, TFP-100 Housing Temperature Transmitter, Pressure Transmitter and Flow Rate Transmitter in a single rugged enclosure to strengthen measuring efficiency and reduce openings.

Temperature Transmitter

• Measuring principle: Temperature sensor
• Material: WZP platinum resistance
• Measuring range: (0~300)°C (optional as per actual operating conditions)
• Measuring accuracy: ±0.5%
• Input voltage: 24V DC
• Output current:: Two-wire system (4-20) mA
• Insertion length: (200-2000) mm or customized insertion length
• Others: The temperature transmitter sleeve enclosure is coated with anticorrosion materials (polytetrafluoroethylene) and a mounting base is provided.

Pressure Transmitter

• Measuring principle: Pressure sensor
• Measuring range: (-10~10) Kpa (optional as per actual operating conditions)
• Measuring accuracy: ±0.5%
• Input voltage: 24V DC
• Output current:: Two-wire system (4-20) mA

Flow Rate Transmitter

• Measuring principle: Pitot tube plus differential pressure transmitter (Pitot tube + 3051CD1 differential pressure transmitter)
• Measuring range: (0~10) m/s to (0~80) m/s, optional as per actual operating conditions.
• Measuring accuracy: ≤±5%F.S.
• Input voltage: 24V DC
• Output current:: Two-wire system (4-20) mA
• Insertion length: (200-2000) mm or customized length
