The Furnace Casing is fabricated in Heavy Duty Construction with M.S Angle Frame with Channel Supports & Double Walled Sheet
Steel Insulated Panel in Modular Construction with Weiled & Bolted Joints.
DOOR-: Horizontal opening type door is provided with adequate Thermal Insulation
HEATING CHAMBER -: Silicon Rods are provided in case of High Temp. 1450°C.
Chamber construction includes a long life grooved refractory chamber element.
Temperature Indication & Control : Auto tune Microprocessor based PID Digital Temperature Indicator – cum – controller for higher
temperature accuracy with suitably located Pt/Rh type thermocouple sensor for higher Accuracy

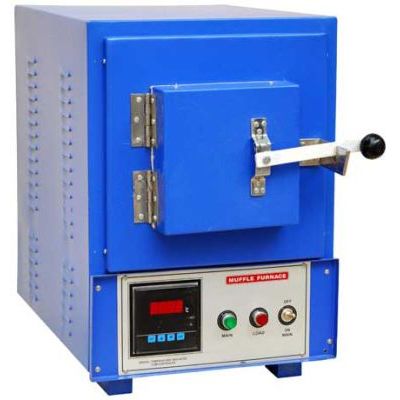

Unique design of ventilation / Chimney provided at the back of the Muffle Furnace (For Fumes outlet)
High Temp. Furnace are of two types -:
“HTM----/1P” Single Phase Furnace
“HTM----/3P” Three Phase supplied with Transformer unit & Pt-Pt RH Thermocouple its control manually & automatically the Amps. Of
silicon rods as per Temp. Requirement.
