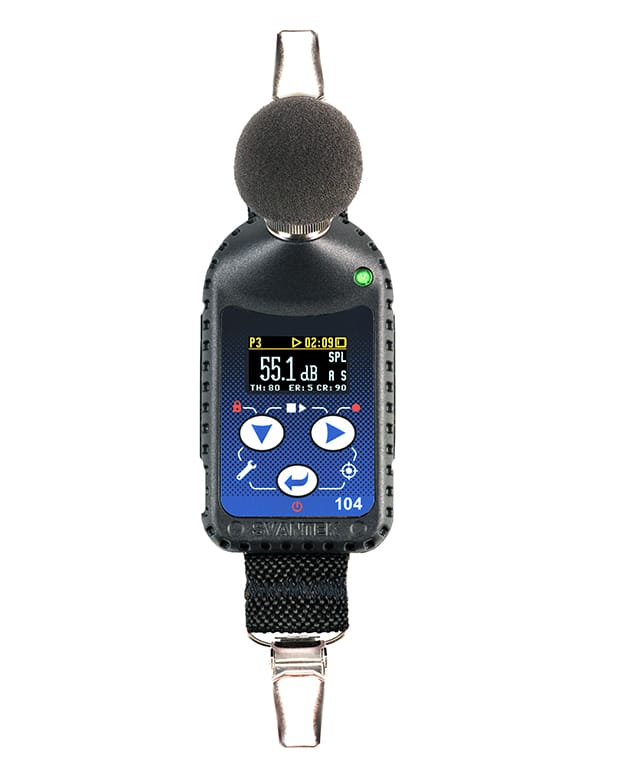

The Dosimeter has been designed to meet requirements of the ANSI S1.25 and IEC 61252 standards for noise dosimeters and the IEC 61672 standard for class 2 sound level meters.
The dosimeter is suitable for noise exposure measurements in accordance with the following standards: ISO 9612, OSHA, MSHA and ACGIH.
The colour graphical display is an OLED SCREEN with a high contrast visibility even in full daylight or in low ambient light areas.
The 2.0 USB interface provides fast data download and is used for battery charging.
The SV 104A is FULLY CONFIGURABLE in Supervisor software. Settings such as exchange rate, time constants, measurement time, start, stop or pause can be adjusted and saved in the instruments' memory as setup files.
The TIME HISTORY LOGGING of results such as Leq, Max, Min and Peak with two simultaneous logging steps is saved in 8 GB memory. All dosimetry results such as DOSE, TWA, Lav are also included.
Patented MEMS MICROPHONE is resistant to mechanical shocks and accidental drop downs. The excellent stability of measurement parameters over the years of use is confirmed by the MICROPHONE LIFETIME WARRANTY.
The AUTO-CALIBRATION facility detects a calibration signal and automatically starts the calibration process, saving the calibration data together with the measurement file, both before and after measurement.
The VOICE ANNOTATIONS before or after the measurements allow easy identification of data files.
The inbuilt tri-axial VIBRATION SENSOR detects mechanical shocks and vibrations that influence noise measurement results and provides the information on the time when dosimeter is not used by the worker.
The SV 104A BLUETOOTH® interface enables current results to be previewed on a smart-phone or tablet using our ASSISTANT application. The smart-phone app also signals an alarm when set noise limits are exceeded.
The SV 104A is the fi rst noise dosimeter on the market with a life-time warranty for the MEMS microphone that is resistant to accidental shocks, knocks or even fall-downs. The SV 104A Bluetooth® interface enables current results to be previewed on a smart-phone or tablet using our Assistant application. The smart-phone application also signals an alarm when the set noise limits are exceeded. All vibrations that aff ect noise measurement results are detected by an inbuilt tri-axial vibration accelerometer and are marked in the results time history, so they can be easily excluded from dose calculation. Additionally, the accelerometer detects if dosimeter is not used by the worker and marks this information in time history. We have designed the SV 104A to make noise dosimetry measurements easier, once the SV 104A detects a calibration signal, it calibrates automatically saving the calibration data together with the measurement fi le, before and after measurement. Options for 1/1 & 1/3 octave and Audio Event Recording allow selection of hearing protectors and noise sources recognition.
The standard SV 104A kit includes patented ST 104A shock resistant MEMS microphone with the LIFE-TIME WARRANTY, windscreen with a steel mounting thread and a USB cable for communication with PC. The instrument has an inbuilt 8 GB memory and a long-range Bluetooth® interface for communication with Assistant application. Each SV 104A has its factory calibration certificate and a 36-MONTH WARRANTY CARD. The standard kit also includes license for PC software and Assistant application for smart-phones.
Supervisor software supports data download, instrument configuration and provides complete set of tools for determination of occupational noise exposure from noise level measurements in accordance to all standards using TWA and DOSE such as OSHA, ACGIH, MSHA, NHO-01 or NR-15. The data files from the SV 104A can be used for calculation of all required measurement results and uncertainties in accordance to the three measurement strategies described in ISO 9612.
The SV 104A Bluetooth® interface enables current results to be previewed on a smart- phone or tablet using our ASSISTANT APPLICATION. The smart-phone application also signals an alarm when the set noise limits are exceeded.
