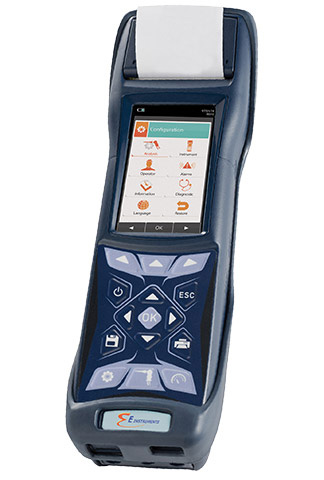

We delivers the complete solution for portable flue gas analysis, integrated into a compact battery-powered unit able to measure up to eight gases simultaneously with nine separate sensors.
Simple to set-up and easy to operate, enables highly accurate spot and semi-continuous gas testing adaptable to a wide variety of applications – ensuring your plant maintains full compliance with safety and emissions requirements.
Customisable to specific gas measurements and process stream conditions, a resilient stainless steel probe extracts the gas sample while advanced real-time processing techniques produce the highly accurate combustion and emissions calculations you need.
| PARAMETER | RESOLUTION | ACCURACY | RANGE |
|---|
| Flue Gas Temperature with Standard SS Probe* | 0.1° C | ± 2.0° C | 0 - 600° C |
| Pressure | 0.1 mbar | ± 2% of FS | ± 150 mbar |
| Velocity | 0.1 m/s | ± 2% of FS | 0 – 50 m/s |
| Oxygen (O2) | 0.1% | ± 2% O2 | 0 – 21% |
| Carbon Monoxide (CO) (H2 Compensated) | 1 ppm | ± 20 ppm < 500 ppm, | 0 – 10000 ppm |
| Carbon Monoxide (CO) (High Range) | 0.01% | ± 5% of FS | 0 – 10% |
| Nitric Oxide (NO) | 1 ppm | ± 5 ppm < 100 ppm, ± 5% of FS > 100 ppm | 0 – 5000 ppm |
| Nitric Oxide (NO) (Low Range) | 1 ppm | ± 2 ppm < 30 ppm, ± 5 ppm > 30 ppm | 0 – 500 ppm |
| Sulphur Dioxide (SO2) | 1 ppm | ± 5 ppm < 100 ppm, ± 5% of FS > 100 ppm | 0 – 5000 ppm |
| Total Hydrocarbon (THC) | 0.1% | ± 3% of FS | 0 – 1%, 0 – 5%, 0 – 100% |
| Carbon Dioxide (CO2) | 0.1% | ±0.3 % of FS | 0 – 20% |
| Efficiency | 0.1% | ±1 % of FS | 0 – 120% |
| Losses | 0.1% | ±1 % of FS | 0 – 99.99% |
| Excess Air | 0.1% | ± 0.2 % | 0 – 2885% |
| CO/CO2 Ratio | 0.0001% | ± 0.0001% | 0 – 0.9999 |
| Poison Index | 0.01% | ± 0.01% | 0 – 99.99% |
